Single Channel Syringe Infusion Pump Durable Medication Infusion Pumps

Ask Lasest Price
Brand Name :	RONSEDA
Model Number :	RSD 810 SB
Certification :	ISO
Price :	Usd 650 / Set
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000 Set / Month
Delivery Time :	5-10 Working Days

Add to Cart

Product Details
Company Profile

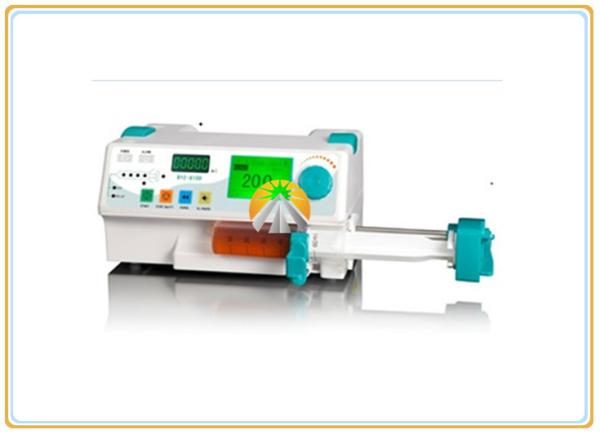

Single Channel Syringe Infusion Pump Durable Medication Infusion Pumps

Portable Single Channel Syringe Pump Hospital Injection Pump HD LCD Display

FEATURES:

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;

3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;

4. Preset solution volume to greatly reduce the workload of nurses;

5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;

6. Three levels of occlusion: high, medium and low;

7. Purge and Bolus function;

8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);

9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;

10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;

11. One-key operation makes setup easy and simple;

12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;

13. Automatically record the settings of last injection;

14.Store 2000pcs of injection records and it has a drug library;

15. OEM is available.

P/N:

RSD 810 SB

DESCRIPTIONS:

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Flow Rate Accuracy	Within ±3% (after correct calibration)
Mechanical precision	Within ±2%
Bolus Rate	50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
Purge Rate	50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Volume Limit	0.1ml ~ 9999.9ml (0.1ml step)
Total Injection Volume	0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms	Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source	AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate	1ml/h
Fuse	F1AL/250/60V, 2pcs inside
Power Consumption	30VA
IP Classification	IPX4
Equipment Classification	Class II, internal power supply, Type CF
Operating Condition	Ambient temperature: +5℃~ +40℃
Relative humidity	20 ~ 90%
Transport & Storage Condition	Ambient temperature:-30℃~ +55℃
Relative humidity	≤95%
Dimension	280mm (L) ×210mm(W) ×130mm(H)
Weight	2.2kg (net weight)

WARRANTY:

One years after receiving item.

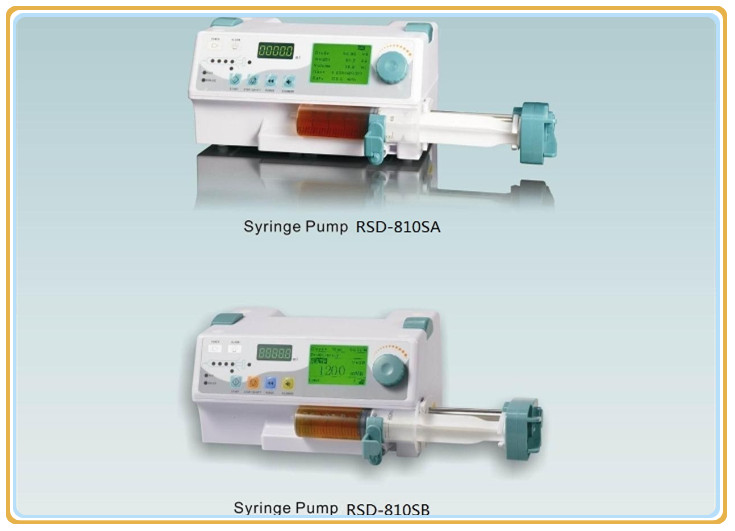

PICTURES:
