2.8 Inch Portable Desktop 3 Parameter Patient Monitor SpO2 NIBP
TEMP
NAME:
Four parameters: NIBP,SpO2,Pulse Rate,Temperature
1 SpO2 waveform, PR strength display
2 2.8 inch color LCD with real time display
3 Storage/Review trend data up to 3888 groups, data save time
interval settable
4 Audio and visual alarm when parameters exceeded and sensor-off
5 Built-in rechargeable Li-ion battery, up to 4 hour running time
6 Automatic shutdown for power saving, shutdown time interval
settable
7 Via USB to connect with the computer ro upload data
8 Battery capacity indicatior and prompt when battery low
P/N:
RSD VT 300
INTRODUCTION:
NIBP
Measure Method: Automatic oscillometric
Patient: Adult and Pediatric
Measurement unite: mmHg/kPa selectable
Measurement mode: Manual, Auto, STAT
Measurement Type: SYS, DIA, MAP
Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60 and 90
Min
Measuring period in STAT mode: 5 Min
Measure range:
Adult:30～255 mmHg; child: 30～160 mmHg
Accuracy: 1 mmHg
Alarm limits range:
SYS : Upper limits70～250 mmHg, Lower limits 60～180 mmHg
DIA : Upper limits 40～200 mmHg, Lower limits35～150 mmHg
MAP : Upper limits 60～230 mmHg, Lower limits 50～160 mmHg
SpO2
Measure Range: 35～100%
SpO2 Accuracy: 2%(70～99%), 3%(40～70%)
Pulse Rate Range: 0～254 bpm
Pulse Rate Accuracy: 1 bpm
Alarm limits range:
SpO2 upper limits : 95～100% lower limits: 85～96%
Pulse Rate:keep up with the heart rate
Temperature
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Measurement Unit: °C/°F selectable
Measure range: 0～50℃
Alarm limits range: Upper limits 36～45℃ Lower limits 34～38℃
Measure accuracy: 0.1℃
STANDARD CONFIGURATION:
NIBP, SPO2, TEMP
WARRANTY:
One years after receiving item.

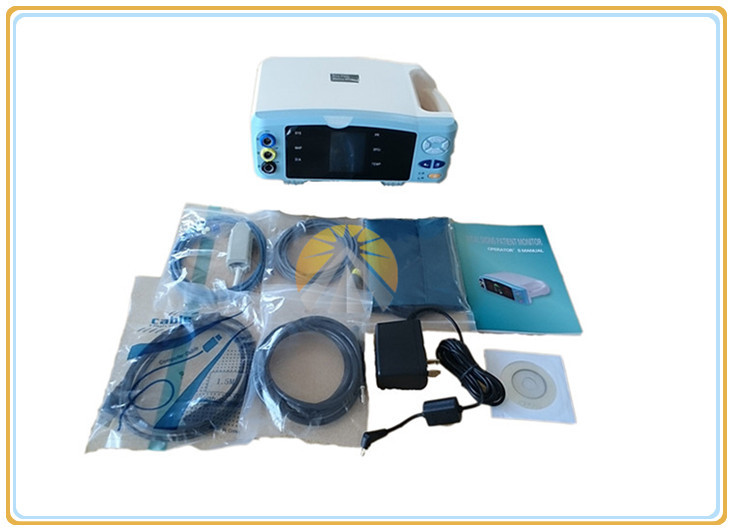

PICTURES:
