Multi-Parameter Patient Monitor 12.1 Inch SPO2 ECG NIBP TEMP PR
RESP
NAME:
Configurations:
Standard: ECG, NIBP, SpO2 and HR, TEMP*2, RESP
Optional: Printer, EtCO2, INCO2,IBP*2,Touch Screen
FEATURE:
12.1 inch color TFT LCD high resolution
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
8 channel waveforms display, suitable to bedside
Suitable for adult, pediatric and neonate
Support alarm of voice, light, character string,3 levels of alarm,
adjustable voice
High capacity for information storage, wired and wireless, easy to
connect with central monitoring system
P/N:
T8
INTRODUCTION:
Ergonomic design, portable, convenient for use.
12.1" TFT display, configurable up to 8 waveforms, enables maximum
data visibility for the most critical parameters.
Unique digital SPO2 technology can work accurate during motion and
low perfusion.
Anti AC & high-frequency electrosurgical & defibrillator’s
interference.
Rich screen layout, standard, large font, trend graph, OxyCRG, ECG
full lead and others.
Strong data storage: 720 hours trends, 10000 group NIBP, 1024
alarms events.
ST analysis, arrhythmia analysis, pacemaker analysis, drug analysis
and calculation.
Audible & visual alarm available, adjustable.
Patient information management function.
Powerful software function to support use in NICU, ICU, OR, CCU or
normal patient room
Optional software upgrading based on USB.
Wired/wireless networking with central monitoring system, up to 64
beds in one group.
Built-in 3 trace thermal recorder for printing real-time and
historical data.
Multi-language i.e. English, Spanish, Turkish.
Super long life rechargeable Lithium battery upto 4 hours of
working time.
Suitable for adult, pediatrics and neonate patients.
SPECIFICATIONS:
ECG Lead mode: 3 Leads or 5 Leads Lead selection: I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2,Auto Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:±1% ST measurement Range: -2.0+2.0mV Pacemaker: Yes ARR detecting: Yes Electrode offset potential: ±300mV Leakage current: <10uA NIBP Work mode: Manual, Auto, Continuous Measure Range: Adult: SYS: 40-270mmHg DIA: 10-215mmHg MEAN:20-235mmHg Pediatric: SYS:40-200mmHg DIA: 10-150mmHg MEAN:20-165mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg Resolution:1mmHg Measurement Type :SYS,DIA,MEAN | SpO2 Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%),,0-69%,upspecified Pulse Rate:20-300BPM Resolution:1BPM Accuracy:±2BPM RESP Measure Range:0-150RPM Resolution:1BrPM Accuracy:±2% TEMP*2 Measure Range:0-50C Resolution:0.1C Accuracy:±0.1C IBP: Measure range: ART:0-300 mmHg PA:-6-120 mmHg CVP/RAP/LAP/ICP:-10-40 mmHg P1/P2:-10-300 mmHg Accuracy: ±2% or ±1 mmHg Environment: Operating Temperature: 59°to 95°F(15°to 35°C) Storage Temperature: 23°to 122°F(-5°to 50°C) Operating Humidity: 15℅ to 90℅,non-condensing |
STANDARD CONFIGURATION:
ECG, NIBP, SPO2, TEMP, RESP, PR
OPTIONAL:
Dual TEMP
Dual IBP
ETCO2 (side stream)
Thermal recorder
Wall mount
Trolley
WARRANTY:
One years after receiving item.

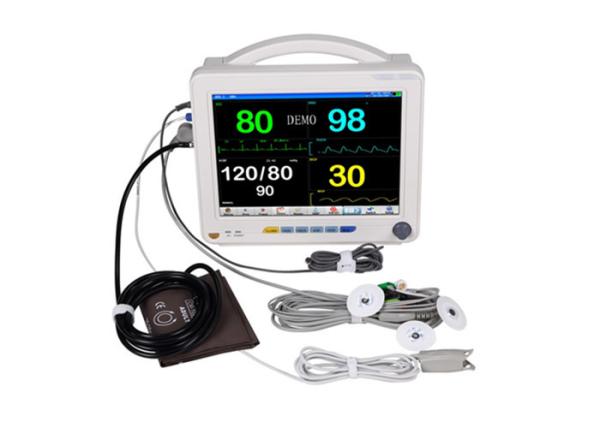

PICTURE:
