5 Inch Touch Screen Tabletop Multi-Parameter Patient Monitor
P/N:
RSD 5000B
INTRODUCTION:
1. Touch screen,5.0 inch color TFT-LCD, simple for operating,
quickly&accurately measure the data;
2. Build-in rechargeable Li-battery, up to 15 hours running time,
support AC and DC power;
3. Adjustable audible and visual alarms, and sensor off alarm;
4. Long time monitoring and sleeping monitoring;
5. Easy to carry, suitable for ambulance center.
GENERAL SPECIFICATIONS:
Storage and review data up to 3888groups via Trend Graph and Trend
List.
USB and Bluetooth data upload;
Big font screen interface is easy to observe;
Back light can be adjusted;
Free advanced software
ENVIRONMENT:
Temperature
Working:0°C～45°C
Transport and Storage: -25°C～85°C
Humidity
Working:30% ～85 %
Transport and Storage: 30% ～95 % (no condensation)
PARAMETERS:
ECG
Input:3- lead ECG cable, standard AAMI cable connector
Lead Selection:I,II,III
Gain Selection:×1,×2,×4,×8
Sweep Speed: 12.5, 25, and 50 mm/s
Frequency Response: None filter: 0.05～100Hz (-3dB), filter:
0.5～40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm～300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%～100%
Resolution:1 %
Accuracy:±2 %(90%～99%), ±3 %(70%～89%),unspecified (0%～69%)
Pulse Rate
Measuring and Alarm Range:20～300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60
(min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg～300mmHg
Pulse Rate Range:30 bpm～250bpm
Measurement Rage: Adult 30 mmHg～255mmHg, Pediatric 30 mmHg～160mmHg
Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall
be equal to those measured by trained medical personnel using cuff
and stethoscope. The MEAN value measured using this device is equal
to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃～50℃
Accuracy: ±0.1℃
STORAGE AND REVIEW:
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
PRINTER(OPTIONAL):
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper,Paper roll diameter≤Φ 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Power Supply:
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity:0～55℃/10～80%RH
Storage Operation/relative humidity:–20～60℃/10～90%RH
FEATURES:
12.1 inch color TFT LCD display, 8 waveforms
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
Easy to connect with central monitoring system
Suitable for adult, pediatric and neonate
Supporting large capacity of storage
ST section and cardiac arrhythmia analysis anti-ESU and
defibrillator
Display mode: Standard, Large Font, Trend Table, Full lead ECG, Oxy
CRG
WARRANTY:
One years after receiving item.

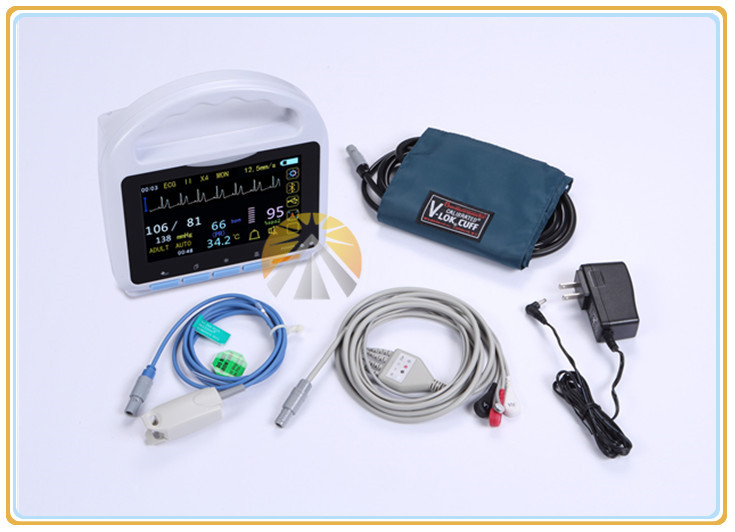

PICTURES:
