Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight

    Buy cheap Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight from wholesalers

    Buy cheap Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight from wholesalers
    • Buy cheap Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight from wholesalers

    Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight

    Ask Lasest Price
    Brand Name : RONSEDA
    Model Number : RSD 7000 Plus V
    Certification : CE and ISO
    Price : Usd 850 / Set
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 Set / Month
    Delivery Time : 5-10 Working Days
    • Product Details
    • Company Profile

    Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight

    Animal Multi Parameter Patient Monitor 12.1 Inch Screen 6 Parameters Vital Signs


    NAME:

    Veterinary Multi Parameter Patient Monitor 12.1 Inch Screen

    6 Parameters Vital Signs Monitoring Devices Animal Use


    P/N:

    RSD 7000 Plus V


    INTRODUCTION:

    This equipment can monitor such parameters as ECG,RESP,SpO2,NIBP,and TEMP.
    It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.

    ECG

    Lead mode: 3 Leads or 5 Leads

    Lead selection: I,II,III,AVR,AVL,AVF,V

    Gain:X0.25,X0.5,X1,X2

    Heart Rate:15-300BPM(Adult) 15-300BPM(Neonatal)

    Resolution:1 BPM

    Accuracy:±1%

    ST measurement Range: -2.0+2.0mV

    Accuracy:±10%

    Pacemaker: Yes

    Sweep Speed:12.5 mm/s,25mm/s,50mm/s

    Bandwidth:Diagnostic:0.05--130Hz

    Monitor: 0.5--40Hz

    Surgery: 1-20Hz

    NIBP

    Work mode: Manual, Automatic, STAT

    Measure Range:

    Adult: SYS: 40-270mmHg

    DIA: 10-215mmHg

    MEAN:20-235mmHg

    Pediatric:

    SYS:40-200mmHg

    DIA: 10-150mmHg

    MEAN:20-165mmHg

    Neonatal:

    SYS:40-135mmHg

    DIA:10-100mmHg

    MEAN:20-110mmHg

    Resolution:1mmHg

    Measurement Type :SYS,DIA,MEAN

    SpO2

    Measure Range:0-100%

    Resolution:1%

    Accuracy:2%(70-100%),,0-69%,upspecified

    Pulse Rate:20-254BPM

    Resolution:1BPM

    Accuracy:±3BPM


    RESP

    Measure Range:0-150RPM

    Resolution:1BrPM

    Accuracy:±2%


    TEMP

    Measure Range:0-50C

    Resolution:0.1C

    Accuracy:±0.1C


    Power Requirements:

    Voltage: 13-20V DC

    Power Consumption: 8 watts, typical

    Battery: 1 sealed Li-battery

    Battery Life: 5 hours, typical

    Recharge Time: 2.5 hours, typical


    Environment:

    Operating Temperature: 59°to 95°F(15°to 35°C)

    Storage Temperature: 23°to 122°F(-5°to 50°C)

    Operating Humidity: 15℅ to 90℅,non-condensing



    FEATURES:

    12.1 inch color TFT LCD display, 8 waveforms

    Rechargeable high-quality Built-in Li-battery

    Easy to learn and use with simplified menus and keys

    Easy to connect with central monitoring system

    Supporting large capacity of storage

    ST section and cardiac arrhythmia analysis anti-ESU and defibrillator

    Display mode: Standard, Large Font, Trend Table, Full lead ECG, Oxy CRG


    WARRANTY:

    One years after receiving item.

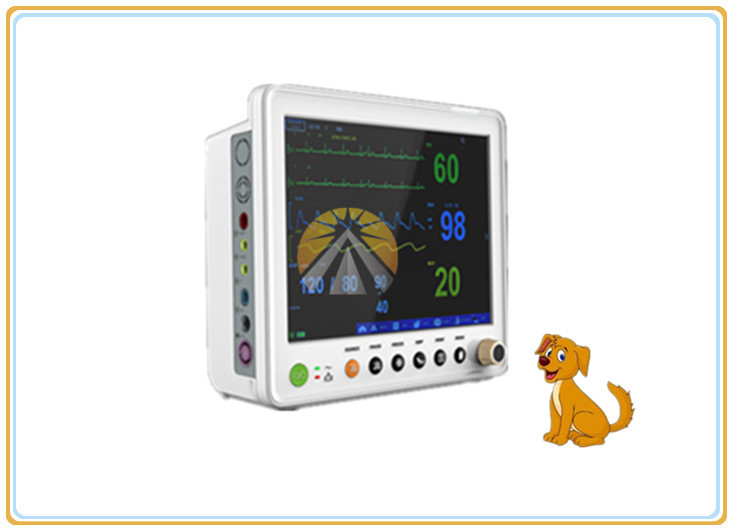

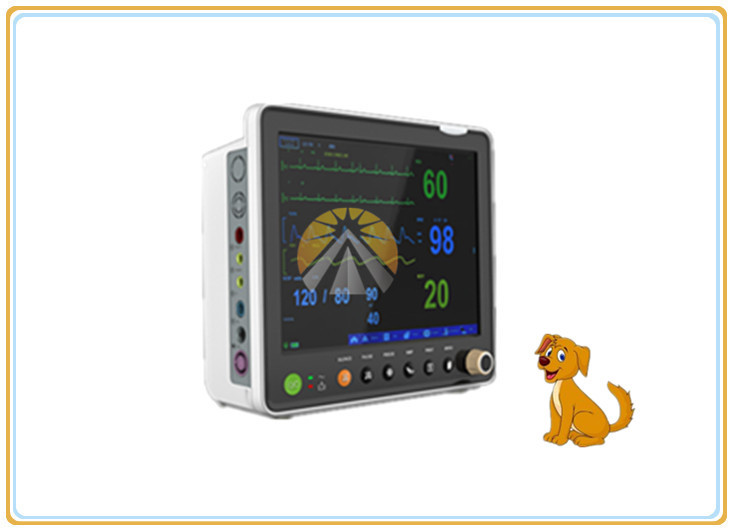

    PICTURES:

    Vital Sign Vet Patient Monitor Simple Operation 2.8KG Light WeightVital Sign Vet Patient Monitor Simple Operation 2.8KG Light WeightVital Sign Vet Patient Monitor Simple Operation 2.8KG Light Weight
