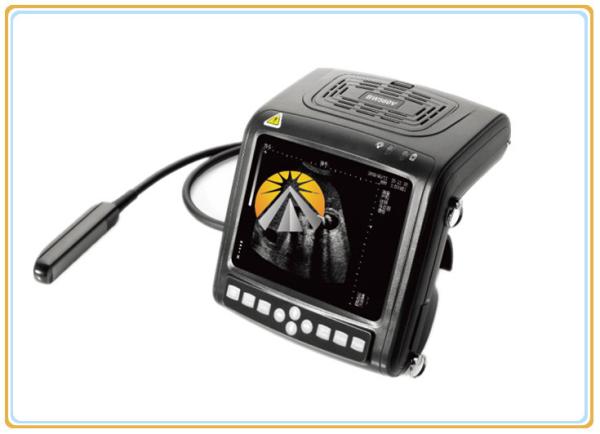

1) Compact and lightweight design: 1.1kg ( 2.4 lbs)
2) Rechargeable Battery Life of 200 minutes
3) 5.7" LCD Display
4) 100 images built-in storage
5) Freeze image switch with free hand
6) 256 Frames Cine
7) USB Port for Flash Card Memory
8) 8 Stages of Magnification
9) Concise Menu for Operation
10) Good Brightness for Outdoor Scanning
11) Wrist Mount and Belt-hanger( for holding probes)Available
FUNCTION:
1. Body marks: 1.bovine 2.dog 3.equine 4.cat 5.cadioloy, total 22
kinds
2. Probe connector: 1pc, automatic identifying function
3. Receiving channel: >=16 digital beam former
4. Resolution: horizontal<=2mm, Vertical<=1mm
Dead Zone: <=5mm
5. Maxim scanning depth: >=190cm(according to the probe)
6. Geometric position accuracy: horizontal<=5%, Vertical<=5%
7. Scanning mode: B, 2B, 4B, B/M, M
Full field image with 8 lever adjustment(8 kinds Magnification)
8. Gain range: general gain continuously adjustment(0~127dB)
9. Dynamic range: 27~90dB, video adjustable
4 kinds angles /width adjustment
10. Gray: 256
11. Imaging technology: full digital beam forming, continuously
dynamic adjustment focusing, Dynamic aperture
12. Image storage: 100 frames permanent storage
13. Cine loop: 256 frames
Intelligent TGC control: near-field and far-field adjustment
14. Imaging processing: pre-processing (continuous dynamic
focusing, dynamic aperture, dynamic filtering), post-processing (4
gamma correction), correlation processing (4 levers), Left/right,
positive/negative, vertical, horizontal flip and B/W conversion,
edge enhancement (4), etc.
With the image enhance the depth and the local amplification
Wire switch realize the freezing and unfreezing
15. Frame rate: 30 frames/second
16. Measurement:
Normal measurement: distance, Perimeter, area (tracing method,
ellipse method), volume, etc.
OB measurement: Cattle, dogs, horses, cats, goats, camels and sheep
and pre-gestational age birth
Heart of conventional measurements: depth, slope, heart rate,
period
17. Report: OB report
18. Character Tags: name, age, hospital name, and automatically
display the date, time, probe type, probe frequency, frame related
to the number of the focus number, gain, dynamic range, etc
19. Battery: (2400MAh), Large capacity lithium Battery, more than
200 minutes work
20. Weight of main unit: 1.1Kg
21. Interface language: English
22. Puncture and guide functionality(Puncture and guide wire 2 can
be calibrated, angel and position are adjustable)
23. Positioning line
24. High-speed USB-A port: Supporting Large-capacity disk and mouse
U
High-speed USB-B port: Could transfer image('case report software
V3.1'software)
25. Dual-mode output: PAL/NTSC
26. Print Output: Optional Video Recorder
27. Other Optional: Battery, battery Charger, apparatus, strap,
bracket
